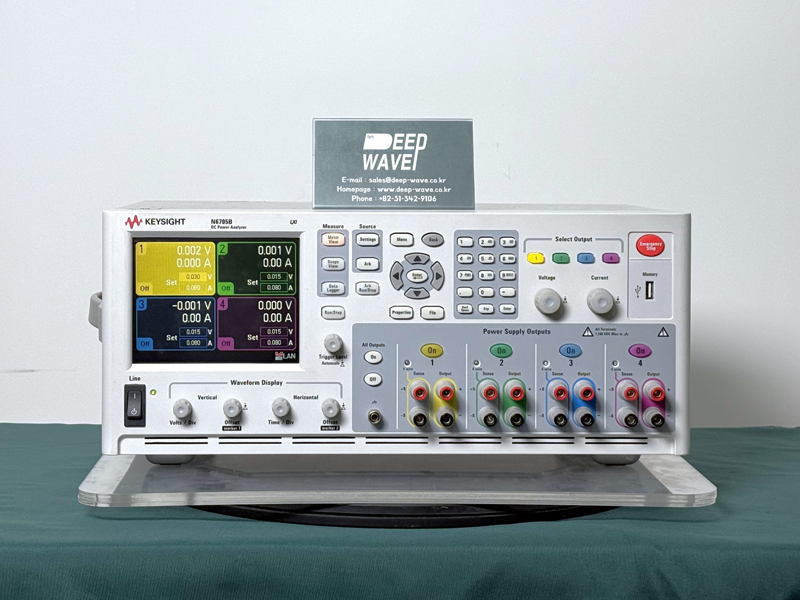

Industry-leading DC voltage and current sourcing and measurement

• Up to 600 W total power and up to 4 modules in a 4-slot mainframe. Over 30 DC power modules available (modules ordered separately)
• Voltmeter accuracy: Up to 0.025% + 50 µV, up to 18 bits
• Ammeter accuracy: Up to 0.025% + 8 nA, up to 18 bits
• Arbitrary waveform generator function: Up to 100 kHz bandwidth, up to 500 W output power
• Scope function: Up to 200 kHz, 512 kpts, up to 18 bits voltage and current digitization
• Data logger function: Measurement intervals of up to 500 M readings per datalog from 20 µs to 60 s
• 4 GB of nonvolatile data storage for data logging, scope traces, and instrument setup

Refer  below to see which options are applicable to your product.
